Xnova TAREQ Edition 3215-945KV V2 Shaft A

Mã SP: XN3215945-A | Thương hiệu: Xnova

Tình trạng: Hết hàng

Hết hàng

Đánh giá:

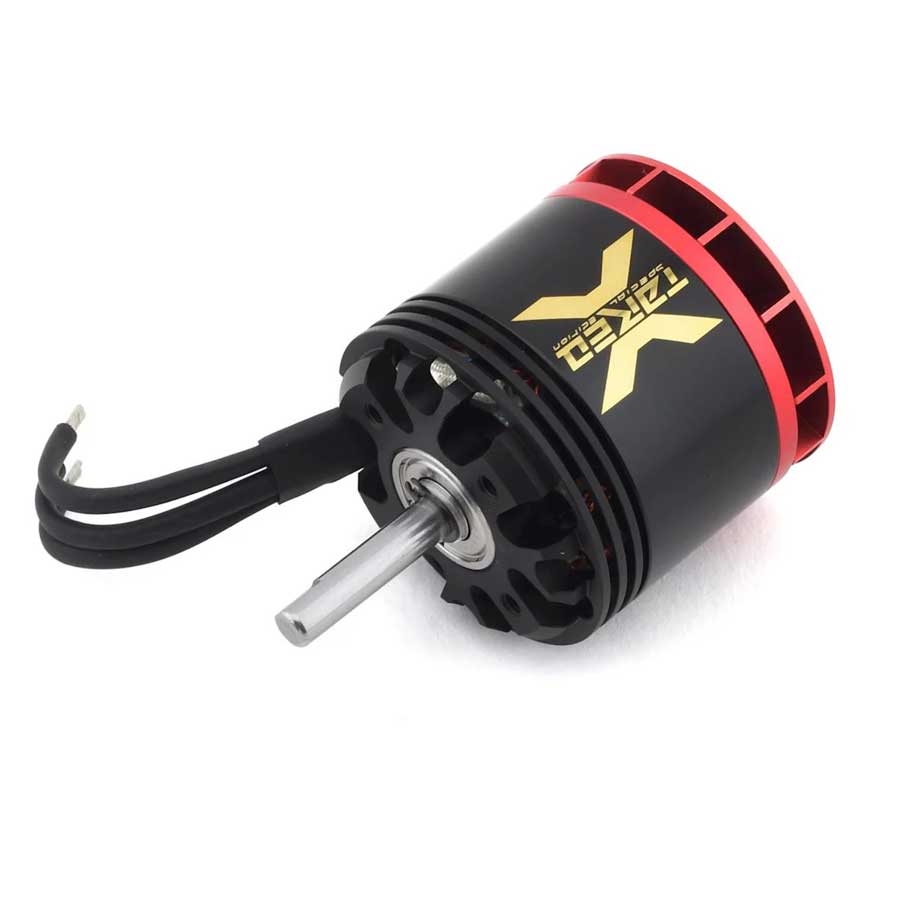

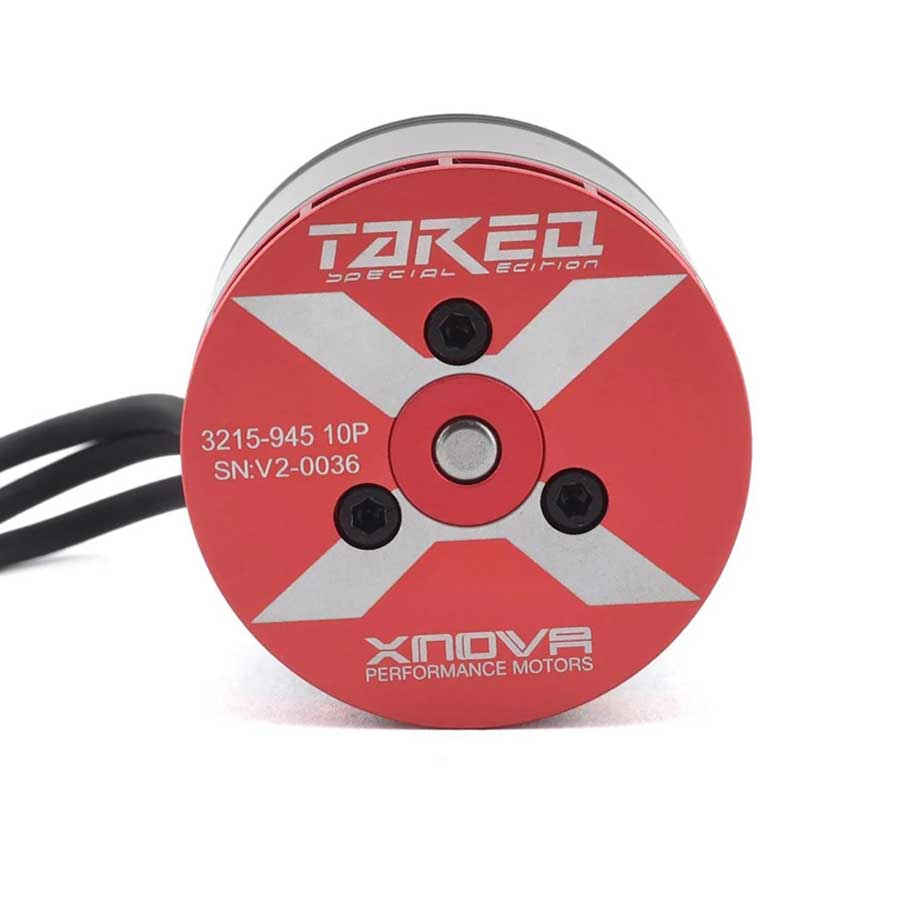

This is the Xnova "Tareq Lightning Edition" 3215-945KV V2 Brushless Motor, an updated version of the Tareq motor that results in an even better overall performing motor and increased efficiency. Xnova brushless high performance out-runner motors are designed for extreme...

THÔNG TIN SẢN PHẨM

Features:

Improved higher efficiency with thinner stator lamination, designed with integrated cooling system resulting in lower temperature
Increased power output by use of thicker hand wound YY single strand copper wires, heat resistant up to 250 degrees C
New type of high-performance neodymium magnets, heat resistant up to 150 degrees C resulting in overall better performance
100% handwound

Specifications:

Slots & Poles: 12n10p

Winding T: YY

rpm/V: 945

Volt (V): 10 / 22.2

Io(A): 1.4 / 2.4

Rm (mohm): 24 / 24

Weight (without connector): 166g

Body Length (no shaft): 40mm

Diameter: 40.5mm

Shaft Length: 22mm

Shaft Dia.: 5mm

Mounting Holes CTC Distance: 25mm

Mounting Screw: M3x0.5

Max Eff. Curr.: 24.15 / 47.12

Max Eff.: 88.41 / 89.81

Kt (Nm/A): 0.0101

Km (Nm/sqrt(w)): 0.0652

Max Continuous Power(Watts): 1350

Peak Continuous Power(Watts) (2 sec): 1800

Max Continuous Current(Amps): 60
