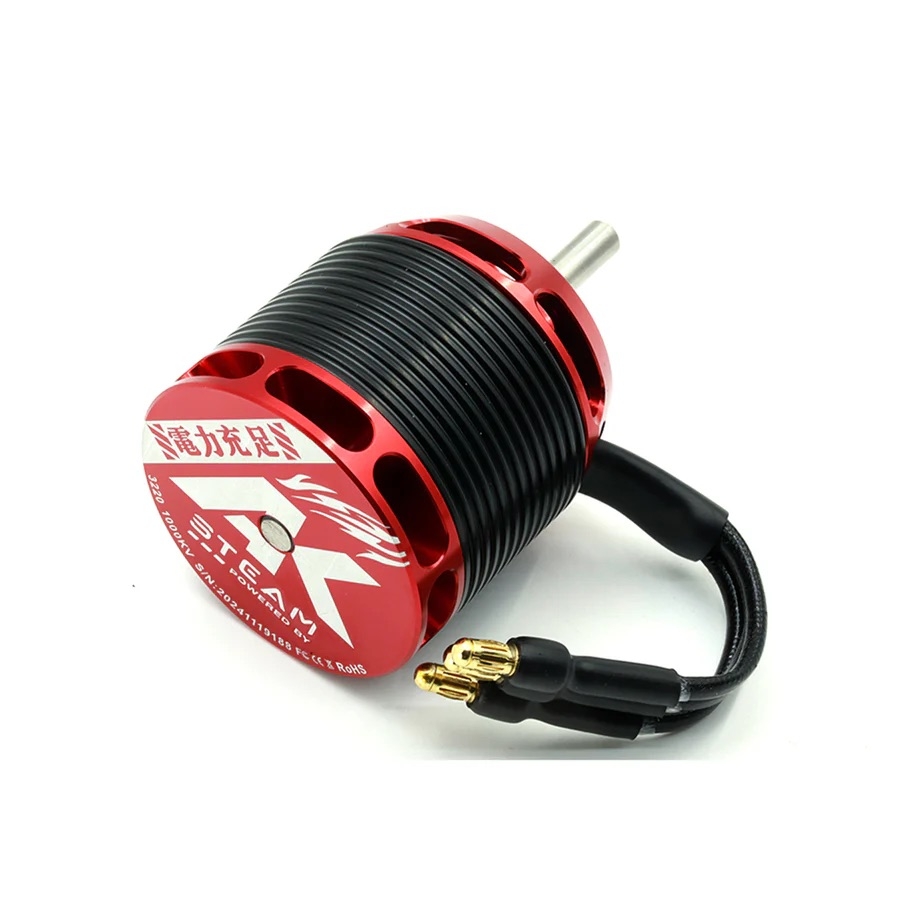

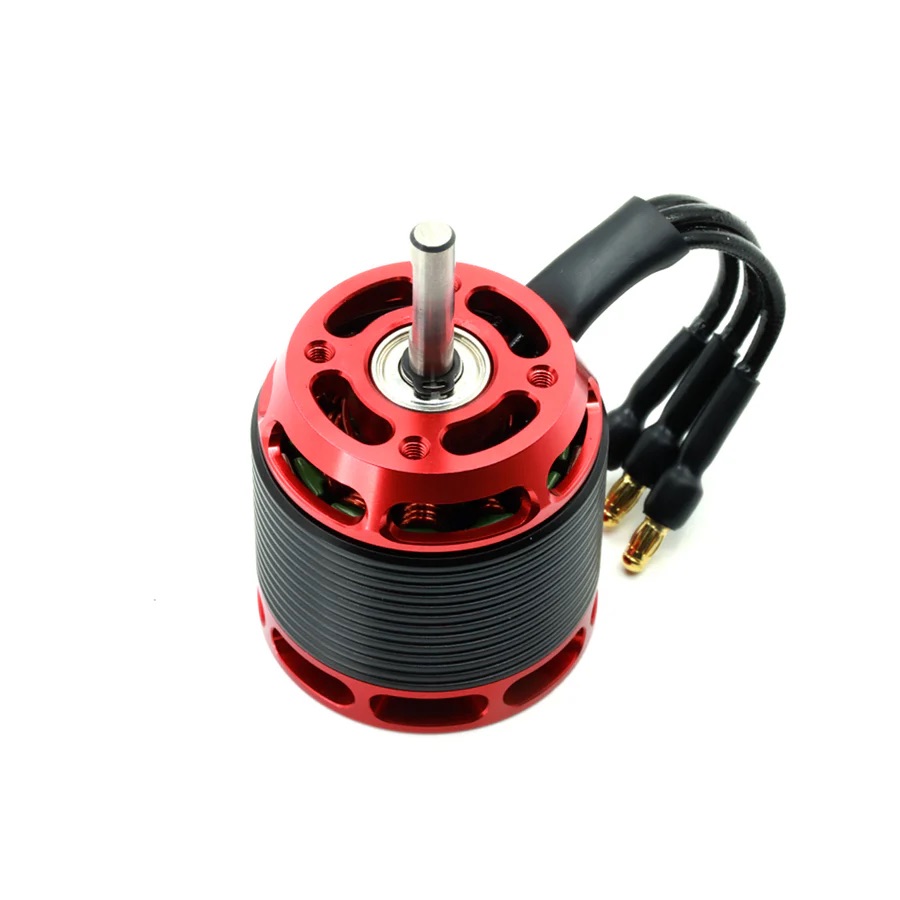

Steam 3220-1000KV Brushless Heli Motor

Mã SP: MD3220-1000KV | Thương hiệu: Steam

Tình trạng: Còn hàng

1.700.000₫

Đánh giá:

Specification: Motor shaft diameter：5mm Motor shaft length：21mm Stator Diameter：32mm Stator Thickness：20mn No. of Stator Arms：8mm Number of slots/poles: 10N/10P Motor Wind: 5+3 Turn Delta Motor wire diameter：0.86mm Motor Kv: 1000KV RPM/Volt Max Continuous Current 105 Amp Max Continuous Power 2260 Watt Weight: 172 Grams Outside Diameter: 40.8 mm Shaft Diameter: 5 mm Body Length:...

THÔNG TIN SẢN PHẨM

Specification:

Motor shaft diameter：5mm
Motor shaft length：21mm
Stator Diameter：32mm
Stator Thickness：20mn
No. of Stator Arms：8mm
Number of slots/poles: 10N/10P
Motor Wind: 5+3 Turn Delta
Motor wire diameter：0.86mm
Motor Kv: 1000KV RPM/Volt
Max Continuous Current 105 Amp
Max Continuous Power 2260 Watt
Weight: 172 Grams
Outside Diameter: 40.8 mm
Shaft Diameter: 5 mm
Body Length: 54.5 mm
Overall Shaft Length: 90 mm
Max Lipo Cell: 6s
Peak Continuous Current: 130 Amps (5 seconds)
Peak Continuous Power: 2920 Watts (5 seconds)
Motor Timing: 5deg~12deg
Drive Frequency: 8kHz~32khz

Steam 3220-1000KV Brushless Heli Motor

Specification:
