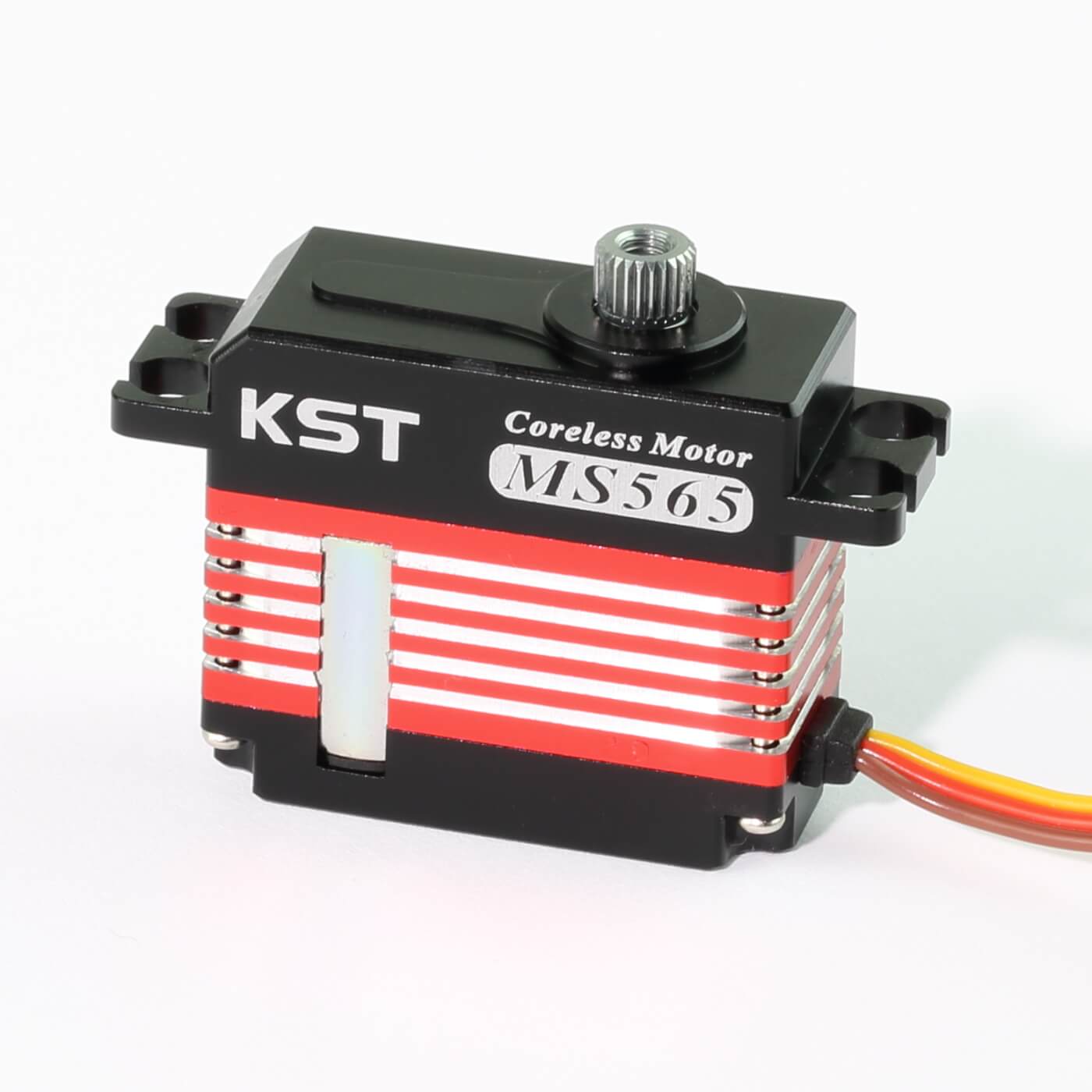

No more scratchy, sketchy potentiometers. Hall effect sensors are taking their place. Many of the glitches and quirks we face from our servos are due to the potentiometers becoming dirty or plain old, worn out. So here we have the new MS servo series from KST with its hall effect sensor and a carefully aligned magnet taking the place of the potentiometer. With this no contact, position sensing system we are a step closer to the day when sketchy, twitchy, double centering servos, will be no more.
Reliability and precision are the name of the game with these alloy cased, hardened steel geared, digital coreless servos. Its very high specs is appropriate for many high demand uses including high speed gliders, helicopters and sport planes.
The KST servos are very high quality and will impress you. Great value for the price!
Perfect tail servo for 450-500class helicopter
Operation Voltage: DC6.0V-8.4V
Size: 35.50x15x32.50mm
Torque:
4.2Kg.cm@6.0V
5.5Kg.cm@7.4V
6.5Kg.cm@8.4V
Speed:
0.05sec/60°@6.0V
0.04sec/60°@7.4V
0.035sec/60°@8.4V
Working Frequence: 760us/ 560Hz
Weight: 38g
Housing material: aluminum, CNC-milled
Servomotor: Coreless bell anchor
Position sensor: magnetic
Force at 6.0 volts: 42 Ncm
Force at 7.4 volts: 55 Ncm
Force at 8.4 volts: 65 Ncm
Mounting straps: standard
Servo gearbox: robust metal gearbox
Bearing: 2 ball bearings
Connection cable · Plug: approx. 30 cm · Graupner plug
