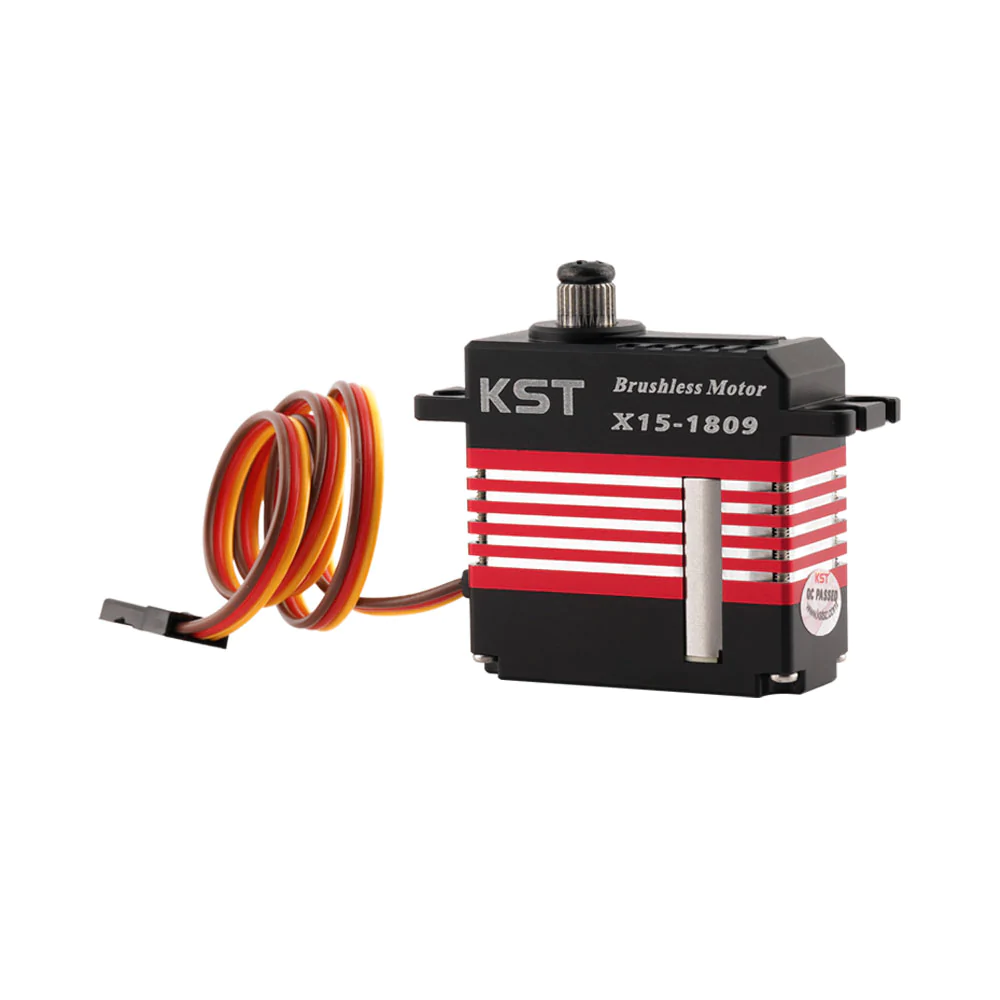

KST X15-1809 Brushless Cyclic Mini Servo

KST X15-1809 Brushless Cyclic Mini Servo

Mã SP: X15-1809 | Thương hiệu: KST Servo

Tình trạng: Còn hàng

2.000.000₫

Đánh giá:

Feature X15-1809 / X15-855X servos are ideal for use in helicopters X15-1809 for Helicopter Swashplate, also applicable as elevator and rudder servos for turbine aircraft

THÔNG TIN SẢN PHẨM

KST X15-1809 v8.0 Digital Metal Gear Brushless Helicopter Swash Plate Cyclic Servo 24.47KG 1520us/333Hz 0.07 Sec

Feature

X15-1809 / X15-855X servos are ideal for use in helicopters
X15-1809 for Helicopter Swashplate, also applicable as elevator and rudder servos for turbine aircraft
X15-855X for Tail
Small Size, Colossal Torque
Precision, high-speed brushless motors
Support High Voltage 8.4V
Programmable via programming card

Specification

Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V
Torque: 1.8N.m@6.0V/ 2.2N.m@7.4V/ 2.4N.m@8.4V
Working Frequency: 1520us/333Hz
Default Travel Angle: ±50° = 100° Total
Temperature Range: -10℃……+65℃
Soft Start: Programable
Programmable: Yes
Case Material: Aluminum Alloy
Motor Type: Brushless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer
Ball Bearing: 2 Ball Bearings
Case Dimensions: 35.5mm*15mm*35.5mm±0.2mm
Speed: 0.09sec/60°@6.0V; 0.08sec/60°@7.4V; 0.07sec/60°@8.4V
Weight: 45g±10%

Performance
