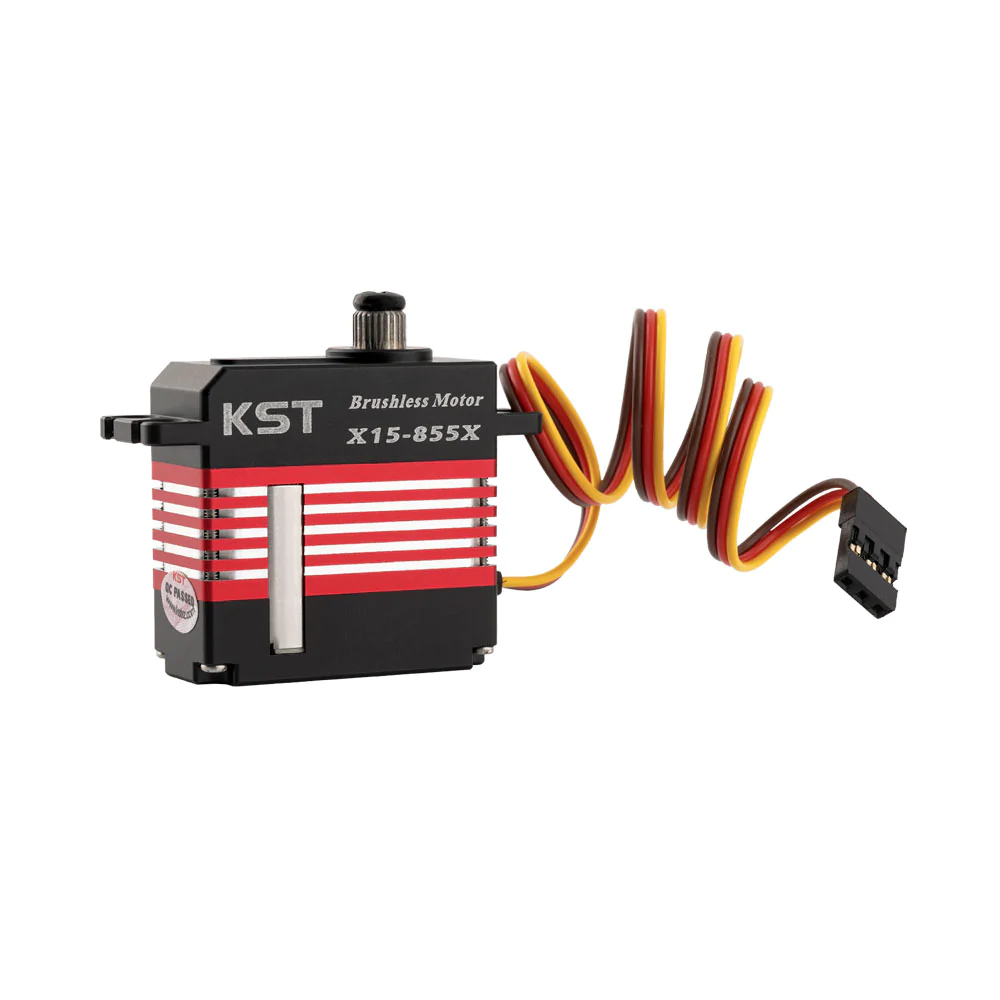

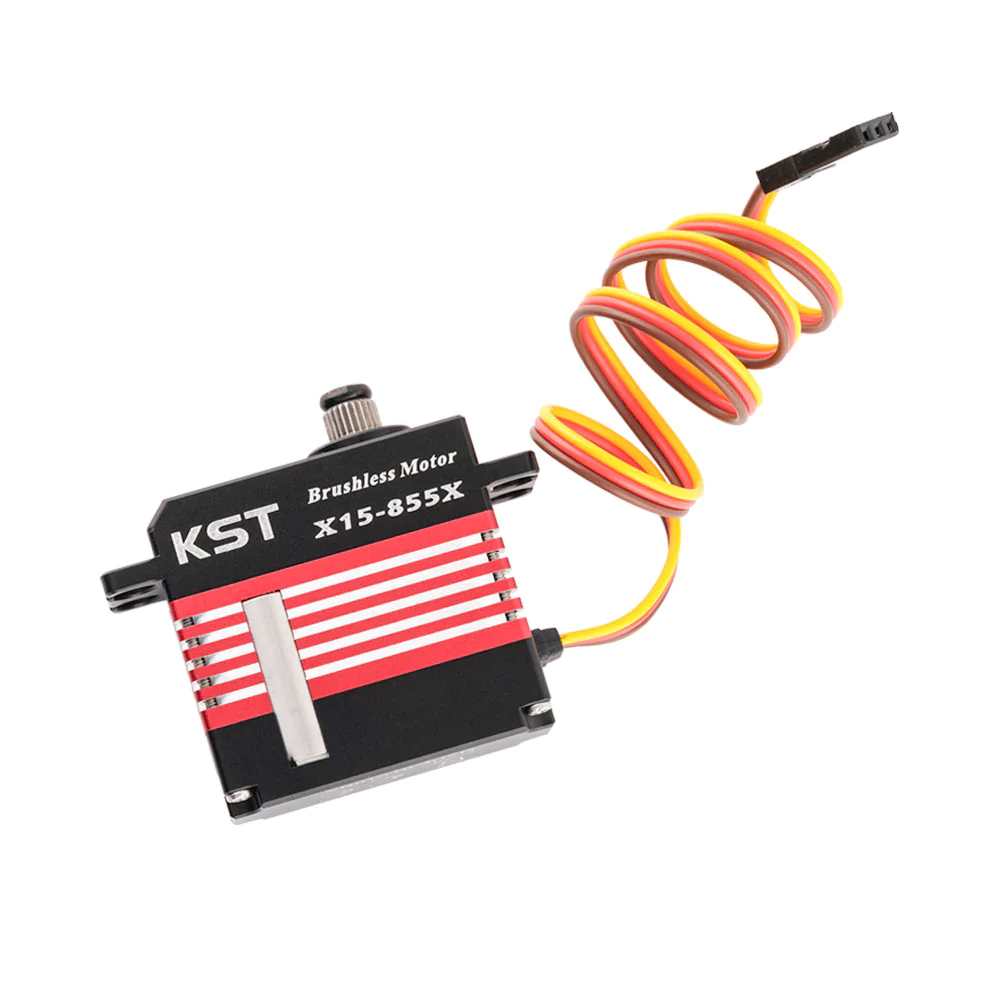

KST X15-855X Brushless Tail Mini Servo

Mã SP: X15-855X | Thương hiệu: KST Servo

Tình trạng: Còn hàng

2.000.000₫

Đánh giá:

Feature X15-1809 / X15-855X servos are ideal for use in helicopters X15-1809 for Swashplate, X15-855X for Tail Small Size, Colossal Torque Precision, high speed brushless motors Support High Voltage 8.4V Programmable via programming card Specification Rated Voltage: DC7.4V Voltage Range: DC6.0V-8.4V Working...

THÔNG TIN SẢN PHẨM

KST X15-855X v8.0 Digital Metal Gear Brushless Helicopter Tail Servo 24.47KG 760us/560Hz 0.05 Sec

Feature

X15-1809 / X15-855X servos are ideal for use in helicopters
X15-1809 for Swashplate, X15-855X for Tail
Small Size, Colossal Torque
Precision, high speed brushless motors
Support High Voltage 8.4V
Programmable via programming card

Specification

Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V
Working Frequency: 760us/560Hz
Temperature Range: -10℃……+65℃
Case Material: Aluminum Alloy
Motor Type: Brushless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer
Ball Bearing: 2 Ball Bearings
Case Dimensions: 35.5mm*15mm*35.5mm±0.2mm
Torque: 1.0N.m@6.0V/ 1.3N.m@7.4V/ 1.5N.m@8.4V
Speed: 0.07sec/60°@6.0V; 0.06sec/60°@7.4V; 0.05sec/60°@8.4V
PWM Command Interface
Weight: 45g±10%

Performance

KST X15-855X v8.0 Digital Metal Gear Brushless Helicopter Tail Servo 24.47KG 760us/560Hz 0.05 Sec

Command signal

Signal Voltage HIGH	min.3.3V, max.5.0V
Low	min.0.0V, max.1.5V
Pulse Width	450us-1050us
Working Frequency	760us/560Hz

Electrical Connection

1	Orange	Signal	PWM Command
2	Red	DC+ Supply	Voltage
3	Brown	DC- Supply	Ground

Size

KST X15-855X v8.0 Digital Metal Gear Brushless Helicopter Tail Servo 24.47KG 760us/560Hz 0.05 Sec

Package Contents

1 * X15-855X 8.4V For Helicopters Tail

KST X15-855X v8.0 Digital Metal Gear Brushless Helicopter Tail Servo 24.47KG 760us/560Hz 0.05 Sec

KST X15-855X Brushless Tail Mini Servo

Feature

Specification

Performance

Command signal

Electrical Connection

Size

Package Contents
